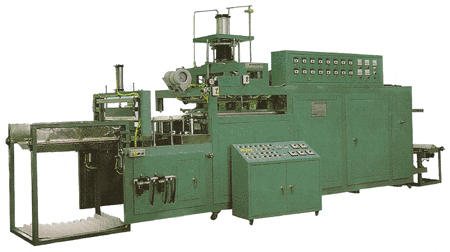

MICRO-COMPUTER CONTINUOUS VACUUM SHAPING MACHINE(CHAIN STYLE)
【SPECIFICATIONS】
| MODEL | HR 6012-A | HR 7012-A | HR 1010-A | HR 1012-A |
| Shaped Area(mm) | 570x1200 | 670x1200 | 970x1000 | 970x1200 |
| Width of Shaping Die(mm) | 500-600 | 600-700 | 900-1000 | 900-1000 |
| Depth of Shaping(mm) | 100 | 100 | 100 | 100 |
| Vacuum Pump | 71 / 2 HP | 71 / 2 HP | 10 HP | 10 HP |
| Air Compressor | 15 HP | 15 HP | 15 HP | 15 HP |
| Power | 45 kw | 55 kw | 70 kw | 75 kw |
| Size of Machine(mm) | 8000x2000x2500 | 8000x2100x2500 | 7000x2400x2500 | 8000x2400x2500 |
| *We can make and design to customer’s order for other specification. |
【FEATURES】
- Using ceramic heating device for faster heating and power saving.
- Computerized automatic-controlled multi-settings. Easy adjustment. Rapid response in heating up. Stable temperature. All contributes to formal materials the most favorable forming temperature and environment.
- Computer-processed feeding for finer precision of feeding length and easy adjustment.
- Three types of mold separation are applied for various kinds of molds:(1)Continuous blowing air (2)Interval blowing air(3)Shaking and blowing air
- Materials are feeding in the manner of clamping style that is suitable for various material thicknesses from 0.10 to 0.15mm.
- Controlled by computer-human interface, which can memorize up to 360 different sets of forming recorders, like temperature, heating time, numbers and various parameters… etc.
【RANGE OF USE】
Electronic tray , electric parts packaging that can be applied in the dust-free room. Meal box, dishes trays, tool box, flowerpot, safety helmet.
【MATERIAL】
Use plastic materials,PSP, PS, PP, PVC, ABS, PET…etc.

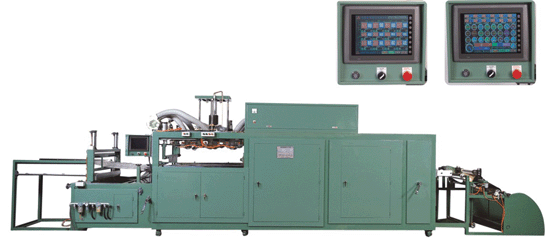

CONTINUOUS VACUUM SHAPING MACHINE(CHAIN STYLE)
【SPECIFICATIONS】
| MODEL | HR 6010-A | HR 7012-A | HR 1010-A | HR 1012-A |
| Shaped Area(mm) | 570 X1000 | 670 x1200 | 970 x1000 | 970 x1200 |
| Width of Shaping Die(mm) | 500-600 | 600-700 | 900-1000 | 900-1000 |
| Depth of Shaping(mm) | 100 | 100 | 100 | 100 |
| Vacuum Pump | 71 / 2 HP | 71 / 2 HP | 10 HP | 10 HP |
| Air Compressor | 15 HP | 15 HP | 15 HP | 15 HP |
| Power | 45 kw | 55 kw | 70 kw | 75 kw |
| Size of Machine(mm) | 8000x2000x2500 | 8000x2100x2500 | 7000x2400x2500 | 8000x2400x2500 |
| *We can make and design to customer’s order for other specification. |
【FEATURES】
- Using ceramic heating device for faster heating and power saving.
- Uses many sets of electronic temperature controls that adjust temperature in separate areas. Heating is rapid.
- Computer-processed feeding for finer precision of feeding length and easy adjustment.
【RANGE OF USES】
Meal box, dishes, tool box, mask and various hardwares parts.
【MATERIAL】
Use plastic materials,PSP, PS, PP, PVC, ABS, PET.
|
MACHINES
Chain Style
